Installing Kato 23-227 gutter set

Back in the fall of 2012 in the post Previously unnoticed track side detail I had mentioned the long row of concrete tiles that run along for miles next to some of the railroad tracks in Japan.  In that post I had also speculated that these may be covered cable ditches for communications cables because I had noticed pipes connecting sensors and signals to these rows of tiles.  At that time I had also identified a Kato set that had parts for building something similar.  Recently I picked up a couple of these sets, Kato part number 23-227.

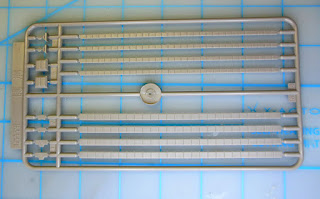

The set includes 4 spues of parts like the one shown in this photo.  The tiled sections are about 5 inches long and there are 4 each of 2 different widths.  There are also a couple of vaults with lids and tees and 45 degree bends.

For this project several sections were attachd together and reinforced with .030 x .060 styrene strip underneath.  A vault section was added to one end of each assembly.

After brush painting concrete color overall, and aluminum color on the vault lids.  I used the clear E6000 adhesive to attach the assembled sections to the roadbed between the yellow and blue Ntrak lines.  Here D cell batteries held things down while the adhesive sets.

This photo shows a finished section after installation.  There is a vault on each side of the river.  My theory is that one or more conduit pipes would exit the vault and go under the road bed and under the bridge to the vault on the other side to continue the path.

This was an easy and fun project, and added a nice touch to the Hot Springs Junction Ntrak right of way.
