We had our AsiaNrail layout setup from Wednesday, April 12th to Sunday, April 16th as part of the Trains and Planes exhibit at the Hiller Aviation Museum in San Carlos, CA.   With an overall size of 20ft x 10ft, this was one of the largest layouts we have done.  The layout consisted of an oval loop and a pair of long branch lines that connected to each other and to the loop through Paul's 4 way juncton module.  This was the first time I have had all my modules in the same layout at one time.



I got to run my new Micro-Ace JR Kyushu 185 Yufu train that I had purchased last month while in Tokyo.  There are 4 cars to this set but we mostly ran it on the branches so we ran it in a 3 car formation.  It is shown here on Paul's Shifen Taiwan module set which was at the end of one of the branches.

The opposite of end of the long double branch line was my Hot Springs module.  Shown here with my JR113 in Nagano colors and Hakone Tozan Railway trains sitting at the station.  I had built a new set of adjustable height legs for this module so it could be set up at the 51 inch AsiaNrail height.  The legs can also be set for Ntrak height for use in an Ntrak layout.  Another modification made to use it in this layout was to replace the sky board with a profile board so it could be viewed from both sides.

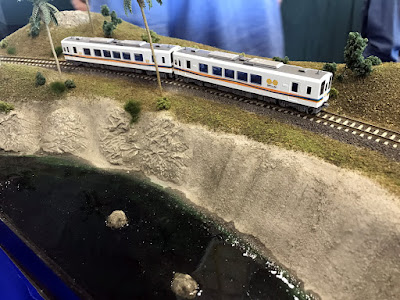

Several other modules made up this branch line and one of them was my 45 degree curved shoreline module, shown here as Paul's Hisatsu Orange Railway Type HSOR-100 passing through.

My 45 degree Highway Overpass module made it's second outing with this layout.  Shown here with Paul's Sanriku Railway Train crossing the bridge.

It was great to have a layout at a show again after 3-1/2 years of not having any opportunities to do so.  This show also had a few other layouts in several scales.   This museum has this event during Easter week along with several other events so it was quite well attended.  It was just Paul and myself running the layout this time so we were on our feet most of the time.  I was mostly running the branch line which is why I have more photos of that part of the layout.

Shopping in Japan - Nakano Broadway

While in Tokyo in March I visited a shop recommended by one of my wife's cousins that I had not been to before.  As the title of this post suggest, it is in Nakano just a few blocks north of the station on the JR Chuo line.

The building is several floors of many shops featuring all kinds of things.  The floors are connected by escalators and I had the feeling that this building may have at one time been a large department store.  The shop I was interested in was identified by it's railway crossing colors on the front.

I had been looking for the Kato HB-E300 Buna set but it was out of stock here as it had been in all the other shops I checked on this trip.  But, I did find something that I had been looking for since my wife and I rode this train in 2017.  With the great exchange rate right now I am really happy with this purchase.  Lots of the items in this shop are resale but the operator of the shop was very good about letting me inspect the models carefully and test everything on the test track in the shop.  This will be running on the AsiaNrail layout setup next week.

Getting ready for the next show

Back after a month in Japan and only 3 weeks before our next layout setup at the Hiller Aviation Museum as mentioned in the last post.  In this layout I will be displaying all of my Japanese modules.  The Hot Springs Junction and the pair of 45 degree modules were all checked out before we left for Japan and are ready to go.  Between now and the show I am checking out the Musashi-Koyama set of modules.  The modules came through the long period of storage just fine and only needed the track to be cleaned.

With each setup I try to have a little something more finished on the modules.  Over the next couple of weeks I plan to finish a Kato Diotown building that has been sitting on the module unfinished since it's beginning in 2011.

Here's the building in pieces as it sits on my work bench.   Right now going through all the stickers I have and figuring out what types of businesses will occupy it.

I also plan to work on some more street signage and add some more people that I purchased while in Japan.

A new beginning

The coronavirus pandemic has prevented train shows in my area over the past 3 years and the modules have been in storage all this time while I worked on my American prototype home layout.  But are slowly starting to open up again.   In most of the US shows and exhibits have already been opening up but California has been slower.

We do now have a 5 day long exhibit scheduled in April at the Hiller Aviation Museum in San Carlos, California.  The dates for our part in the exhibit will be from Wednesday, April 12th to Sunday, April 16th.

This is a photo from our layout at Hiller several years ago.  This one will be similar but with a couple branch line added.

There will also be other layouts in the exhibit and of course the air museum itself is worth the visit.

The Hiller Aviation Museum is located at 601 Skyway Road in San Carlos, California.  This is the frontage road on the east side of US 101 just south of Holley Street.

LINK to their web site.

An automated point to point system

It's been a long time since I've posted here and a long time since there has been a chance to set up and run the AsiaNrail layout.  The last setup we had was at the Narrow Gauge Convention in Sacramento back in the fall of 2019.  During all this time with the pandemic my energy has been directed toward my American Prototype home layout.  But AsiaNrail now does have an exhibit scheduled for April, more on that in a future post.

Having something on the schedule has motivated me to get the modules out and get them ready.  There is one project that I have been thinking about for a long time and thought now would be the time.

The AsiaNrail layout always has several stub end branch lines and often there are not enough operators to have them running along with a continuous running loop.  I thought it would be great to have something that could automatically do a point to point run on one or two of the branch lines.  My experience with the Azatrax IR train detection products on my home layout lead to to try out their point to point controller.

First step after I got the controller was to try it out on a temporary Unitrack setup.  The control circuit itself is the green circuit board to the left of the track.  I made some temporary holders for the IR sensors from wood scraps.  I had this running two different trains that would alternately go out from one of two spurs, go to the end of the single line and stop for about 10 seconds before returning.  The controller took care of the turnout and also has an adjustable momentum feature built into it.

Being satisfied with the results of the test setup, I went about making this into a setup that could work on a modular layout.  The Hot Springs Junction module would be the base and would have the IR sensors permanently installed under the tracks next to the station platforms.  In this mode the detection is caused when the IR signal is reflected off the bottom of a train.  The sensors would be behind the platforms at the station so would be almost totally hidden when viewed from the side.  The overhead view below shows these sensors pointed out in green.

The sensors at the remote end will need to be on whatever module is at the end of the run.  I made up a fixture from brass to hold the sensors at the end of a 25 foot long cable.  In this photo it is shown in it's storage box along with other layout electrical hardware.

The controller board was mounted in a plastic box with a clear lid so the indicator LED's could be seen.  This will hang on the leg cross brace under the module.  In this photo the lid has not been installed yet.  Connections to this control box are for power, the remote sensor and the main cable connection to the module.

This small test layout using the Hot Springs Junction module and the two small single track modules was used to further test and experiment with this control system.  Because the turnouts on the Hot Springs Junction module were not wired as power routing, I was not able to make make this setup work the same way as the Unitrack test setup.  In the interest of having something ready for this next show, for now this is going to run just the one train point to point.  Later, when I have more time I will redesign and wire things to use the full function of the controller.
