Saturday, October 30, 2010

Continuing with station & platforms

With the station and its stairways and supporting structures finalized I turned my attention to the platforms.  I had already cut the platforms to the desired length and installed them on the modules prior to installing the station.  Now I needed to go back and customize the platforms for installation of the awnings as I was not placing them in the pre-drilled holes on the platforms.

The photo on the left shows the "asphalt" surface of the platform removed from the concrete platform structure.  Notice the screw showing near the right end of the platform.  These attach the platform to the module and is hidden by the surface piece.
Kato does not offer a tapered awning to match the end platforms so I had to make my own by modifying a standard awning.  After cutting the angle with a razor saw, I cut the edge off a scrap piece of awning and glued it to the cut edge of the angle part of the awning to give it a finished look.

Some white styrene was cut to match the cut end of the awning.

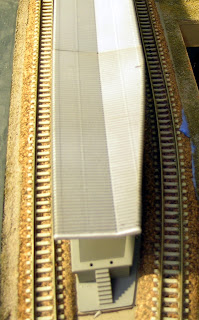

Here's a look from the other side.  On this side the stairway between the station and the platform goes through the awning.  I still need to complete the tapered awning on this end of the platform.
This is how the right end of the station platform looks right now.  Once all of the structures are just the way I want them, they will come off of the module and go to the spray booth for painting before being re-installed.
