Starting the station

The most important structure on this module set will be the station itself.  At this point it would be good to take a look at a screenshot of a Google satellite photo.  The photo is a few years old because the station no longer there.

From the scale given on the photo it can be determined that the dimensions of the station building are about 60ft x 80ft and that the platform is about 450ft long.  Also the covers over the platform are a close match to the ones that come with the Kato platforms.

The Kato overhead station is a close match to many of the overhead stations in Japan that serve two tracks.  I had one left over from the T-Trak module and had started to modify it to more closely match the original Musashi-Koyama station but in the end decided to scratch build the station and support structures and use the stairways from the Kato station. Another thing that makes the model of this structure critical is that it sits on the seam between the two modules and will need to be removable.

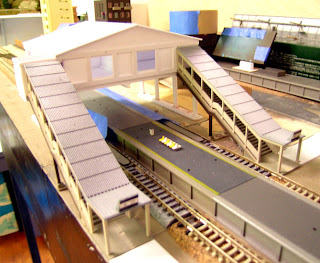

This is how the model of the station structure looks right now.  The basic pieces are complete and I came up with a way of attaching the stairs and the structure to the module so that they can be removed.   It still needs an additional set of columns that will attach to the platform and of course paint and detailing.
